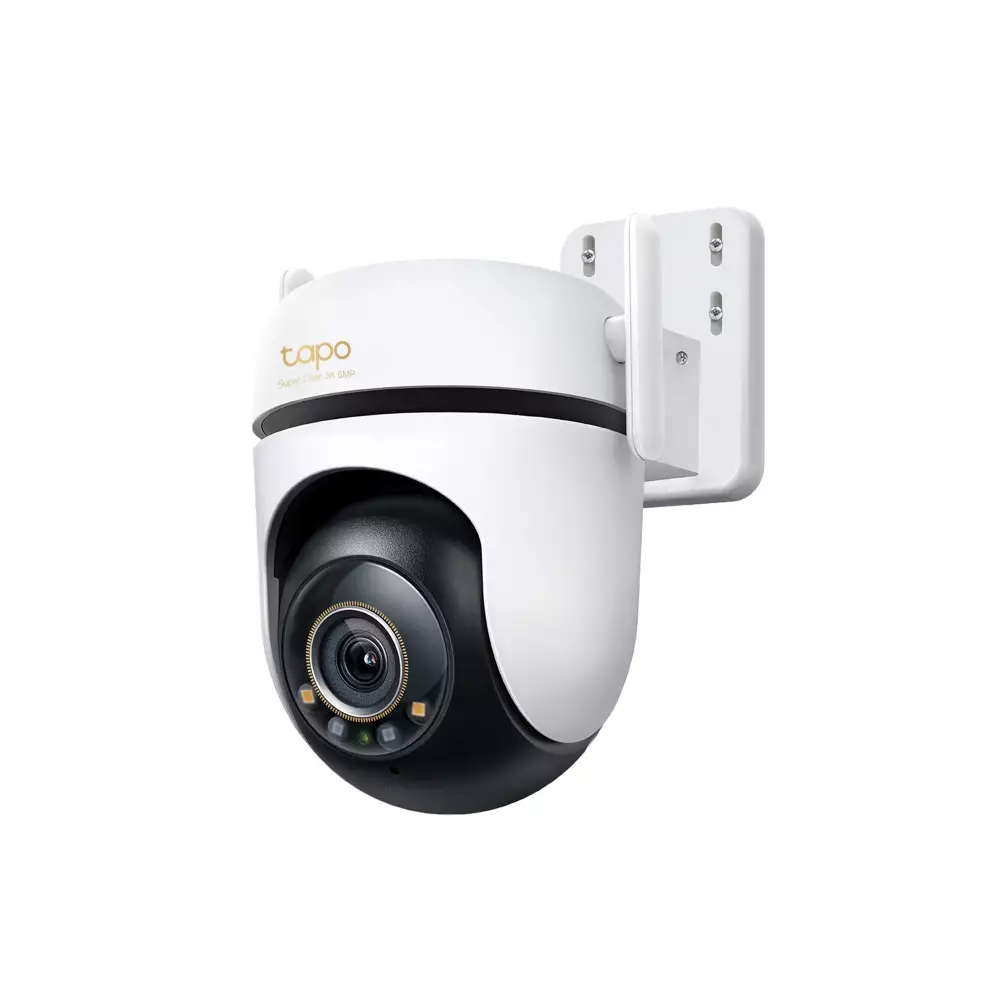

TP-LINK TAPO C530WS OUTDOOR SECURITY CAMERA

TP-LINK TAPO C530WS OUTDOOR SECURITY CAMERA

Product Code: 47778155

The TP-Link Tapo C530WS is designed for outdoor use, featuring a Pan/Tilt security camera that combines 3K resolution, extensive motion coverage, and smart detection. The camera captures 2880 × 1620 pixel images at up to 30 frames per second, ensuring detailed monitoring of any activities in your area.

Wide View and Precise Motion Tracking
The camera offers 360° horizontal panning and 130° vertical tilting. With motion tracking, it effectively monitors activity across a large area, and in patrol mode, the camera can cycle through pre-set monitoring points.

Equipped with a 5 MP Progressive Scan CMOS sensor, a fixed 4 mm lens, and an f/1.6 aperture, this camera produces stunning 3K video. The horizontal field of view is reported at 87°, with a vertical field of 45.5° and a diagonal field of 102°.

Intelligent Detection Minimizes False Alerts
The Tapo C530WS utilizes intelligent AI detection to identify people, vehicles, and pets. Additionally, it supports perimeter intrusion detection and video tampering alerts with customizable activity zones for event-triggered notifications.

Clear Image Even in Low Light
Starlight technology, two built-in spotlights, and infrared LEDs enable visibility in low-light conditions. The infrared illumination range is up to 29.87 meters. Color Night Vision provides color night-time video, while WDR and 3D digital noise reduction enhance image quality in varied lighting conditions.

Wi-Fi and Ethernet Connectivity
The camera can be connected to your network via wireless Wi-Fi or Ethernet cable. It supports 802.11b/g/n/ax standards for a 2.4 GHz Wi-Fi connection as well as 10/100 Ethernet. Two Wi-Fi antennas facilitate stable wireless connectivity.

The Tapo app simplifies camera management, and the device is compatible with Alexa and Google Assistant. Support also includes ONVIF and RTSP protocols.

Two-Way Audio and Customizable Alerts
A built-in microphone and speaker enable two-way communication through the camera. Additionally, a built-in 93 dB siren and sound and light alerts enhance security measures.

Storage Options: microSD or Cloud
Video recordings can be stored on a microSD card with a maximum capacity of 512 GB. Tapo Care offers cloud storage options. The camera also features a privacy mode to limit its functionality when needed.

Designed for Outdoor Use
With an IP66 rating, this camera is dustproof and waterproof. The operating temperature range is -30–60 °C, and it can function in relative humidity conditions of 10–90% RH without condensation. The camera can be installed on walls, ceilings, or poles.

Key Features
3K 5 MP video, 2880 × 1620 pixels
Up to 30 frames per second
360° panning and 130° tilting
87° horizontal, 45.5° vertical, and 102° diagonal field of view
Smart person, vehicle, and pet detection
Motion detection and AI-based tracking
Perimeter intrusion and video tampering detection
Starlight technology and Color Night Vision
Two built-in spotlights
Infrared LEDs with a range of 29.87 m
WDR and 3D digital noise reduction
Two-way audio
Built-in 93 dB siren
Sound and light alerts
Customizable activity zones
Privacy mode
Wi-Fi 802.11b/g/n/ax, 2.4 GHz
Ethernet 10/100
Two Wi-Fi antennas
microSD card support, maximum 512 GB
Tapo Care cloud service
Tapo app
Compatible with Alexa and Google Assistant
ONVIF and RTSP support
IP66 rating
Wall, ceiling, and pole mount capable

Technical Specifications
Product Name: TP-LINK Outdoor Pan/Tilt Security Wi-Fi Camera
Model: Tapo C530WS V2
Camera Type: Network security camera, color, day/night, Pan/Tilt, outdoor use
Image Sensor: 5 MP Progressive Scan CMOS, 1/2.7"
Video Format: H.264
Video Resolution: 2880 × 1620
Video Mode: 3K
Frame Rate: Up to 30 fps
Lens: Fixed focal length, 4 mm
Aperture: f/1.6
Digital Zoom: 12×
Horizontal Field of View: 87°
Vertical Field of View: 45.5°
Diagonal Field of View: 102°
Panning: 360°
Tilting: 130°
Infrared Range: 29.87 m
Network Connections: Wi-Fi 802.11b/g/n/ax, 2.4 GHz, Ethernet 10/100
Interfaces: Ethernet, microSD
Encryption: 128-bit AES, TLS, SSL, WPA, WPA2-PSK, WPA3
Audio Support: Two-way communication, microphone and speaker
Siren: 93 dB
Power Source: External power adapter, AC 100–240 V, 50/60 Hz
Camera User Current: DC 9 V / 0.85 A
Power Consumption: 3.9 W
Camera Dimensions: Width 9 cm × Depth 12.3 cm × Height 12.17 cm
Weight: 347 g
Operating Temperature: -30–60 °C
Operating Humidity: 10–90% RH, no condensation
Compatibility Standards: IP66, RoHS, FCC, RCM
Operating Systems: Android 7.0 or newer, Apple iOS 12 or newer
Manufacturer's Warranty: 24-month export warranty

Package Contents
TP-Link Tapo C530WS V2 Security Camera
Installation Kit
Power Adapter Cable, 3 m
